FLEXIBLE BORDER TUBING

Not only is the future BRIGHT It’s FLEXIBLE! Capture the vibrant colors and slim profile of neon with Allanson’s Flexible LED Border Tubing solution. With unsurpassed flexibility, our newest LED lighting solution conforms to numerous contours and shapes allowing you to bring your creative vision to life quickly and easily.

Flexible Border Tubing is part of our ColorMix family of products which means that now you can create exciting color changing/animating lighting effects more easily than ever before. With a full lineup of LED solutions in both rigid and flexible tubing options, you’ll enjoy unparalleled programming features, that will make any sign maker “beam with joy”.
From inception to delivery, Allanson sales engineers will guide you through the process to ensure that your desired outcome is achieved with simplicity and maximum efficiency.

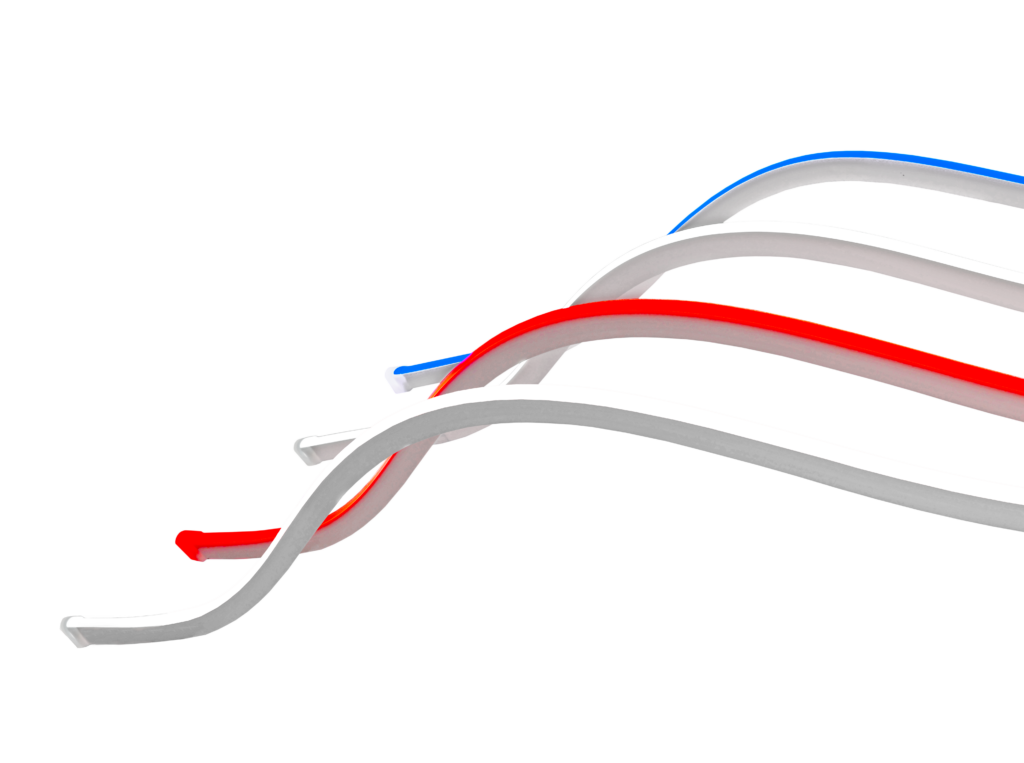

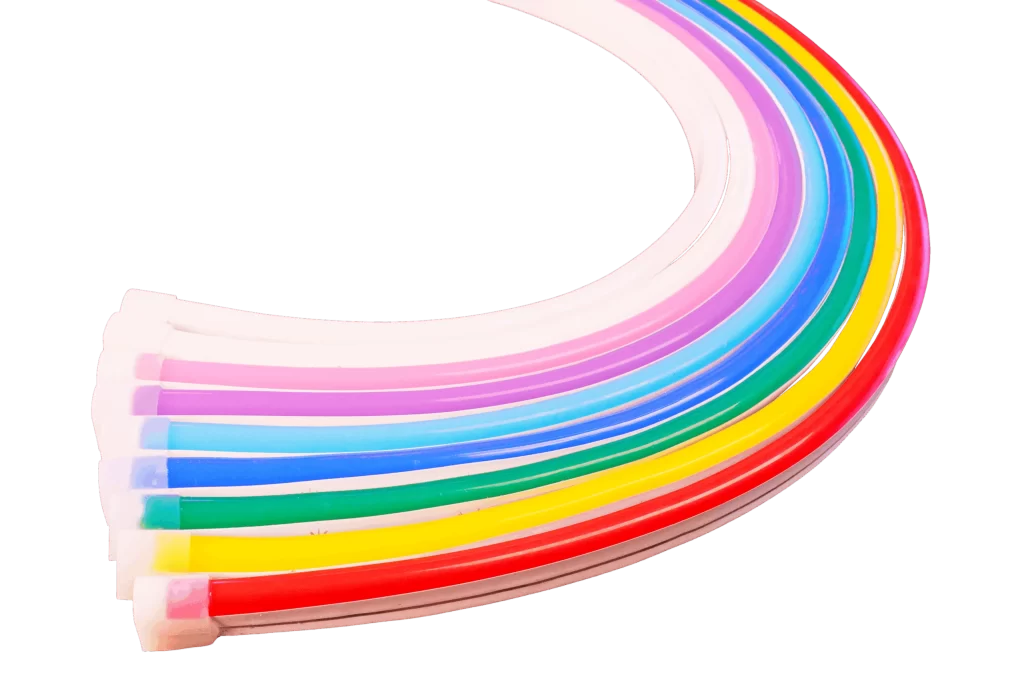

11mm Flexible Border Tubing Features & Benefits

  • 11mm side-bendable tubing

  • 5 static colors and RGB color changing options available

  • Colored jacket that’s visible even when powered off

  • UV resistant silicone housing

  • 3 ounce copper LED ribbon for better heat dissipation

  • 2 wire pig tail lead for standard colors

  • Operating Temp: 40°C to 50°C

  • Beam Angle: 150°

  • Protection Class: IP67

  • Voltage: DC 24V for standard colors and DC12V for RGB

  • 3 Year Warranty

Power Capability:
Standard colors max combined footage 19’ 8” (6m) per Allanson 96W 24V DC Power Supply.
RGB max combined footage 16’ 4” (5m) per Allanson 60W 12V DC Power Supply.

Colors:
Cool White 6500°K (CW), Red (RD), Yellow (YL), Blue (BL), Green (GR), and RGB
Custom colors upon request*

Cut Increments:
1.97” (50mm) for standard colors
1.64” (41.67mm) for RGB

Packaging:
Anti-static bag per 19’ 8” (6m) reel with 12 clips for standard colors
Anti-static bag per 16’ 4” (5m) reel with 10 clips for RGB

Installation Hardware:
Clips included but not attached. Clip types are be determined based on application.

DOWNLOADS

Flexible Border Tubing is part of the ColorMix product line

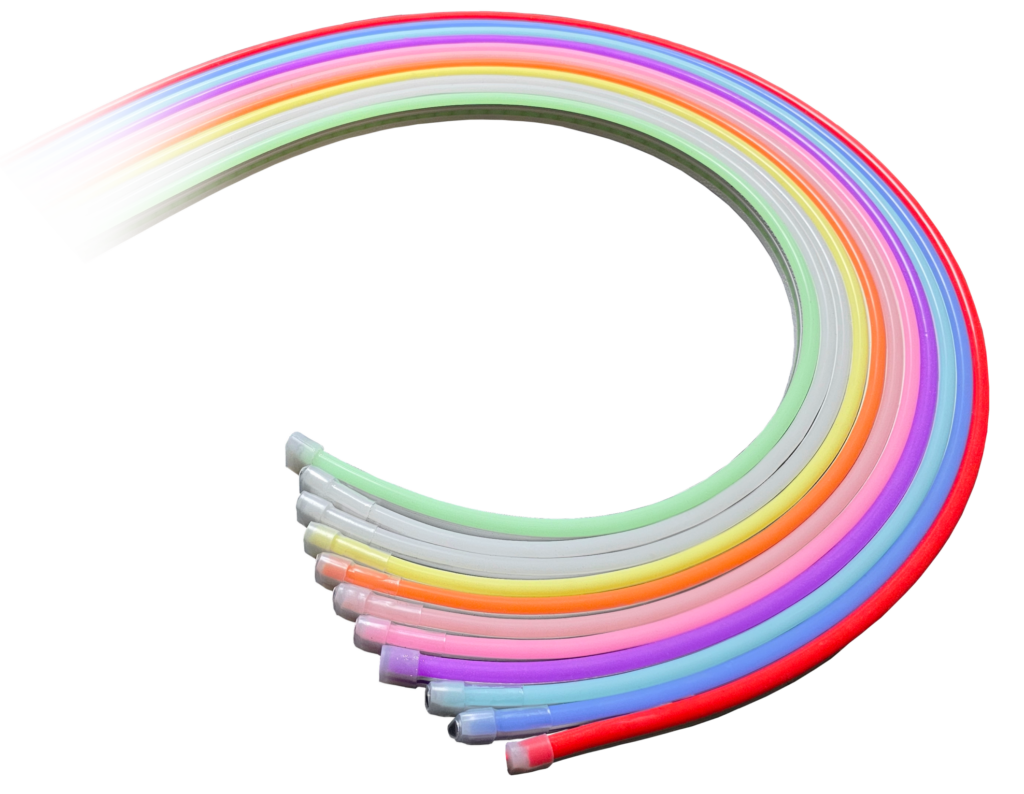

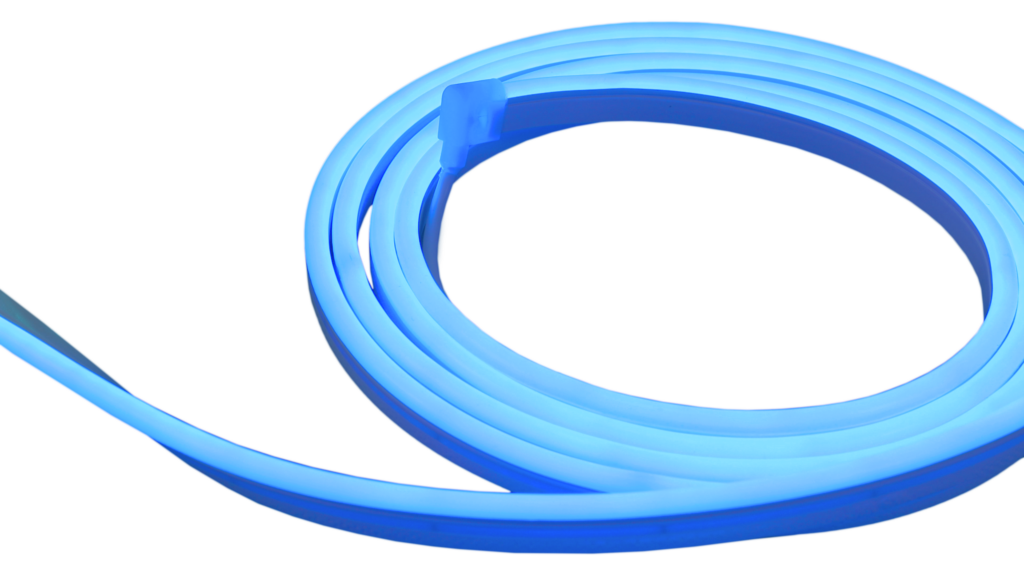

6mm Flexible Border Tubing Features & Benefits

  • 6mm ultra-slim side-bendable tubing

  • 11 static colors available

  • Colored jacket that’s visible even when powered off

  • Max Bending Diameter of 30mm/1.18”

  • Operating Temp: -30°C ~ 50°C (-22°F ~ 122°F)

  • Protection Class: IP65 outdoor rated

  • Voltage: 24V DC

  • 3 Year Warranty

Power Capability:
Standard colors max combined footage 31.49’ (9.6m) per Allanson 96W 24V DC Power Supply.

Colors:
Red (RD), Green (GR), Blue (BL), Purple (PU), Baby Blue (BB), Orange (OR), Pink (PI), Yellow (YL), Coral (CO), Warm White 4000K (WW), Cool White 6000K (CW)

Cut Increments:
Free Cut (9.1mm) / (0.35”)

Packaging:
1m, 2.5m, and 5m roll (3.28′, 8.2′ and 16.4′)

Installation Hardware:
Plastic clips (included), aluminum clips, aluminum track, flexible track.

Clip types are be determined based on application.

DOWNLOADS
