RIGID BORDER TUBING

The future is BRIGHT with the ColorMix family of products! Capture the vibrant colors and slim profile of neon with Allanson’s Rigid LED Border Tubing solution to complement and enhance the appearance of your building. Now it’s even easier to create exciting color changing/animating lighting effects for your indoor and outdoor applications. With virtually limitless options available with the ColorMix product line.

Allanson’s LED Rigid Border Tubing is a premium LED system that complements and enhances the appearance of your building. Flexible clear end caps provide uniform illumination, giving natural flow of light from one tube to the next. Available in seven dimmable standard colors and IP67 rated for indoor and outdoor use. Rigid UV resistant polycarbonate housing is affixed with reliable stainless steel snap clips and aluminum slide attachments making mounting easy.

Rigid Border Tubing Features & Benefits

  • 7 static colors and RGB color changing options available

  • Balanced even illumination – no dead spots

  • Rigid UV resistant polycarbonate housing

  • Stainless steel retention/mounting clips and aluminum slide attachments for easy mounting

  • Dimmable with the ACL-12/24V-DMR

  • Translucent end caps allow for thermal expansion and contraction, eliminating shadows and hotspots to provide uniform illumination

  • Clean connections with wires securely & effectively retained behind tubing

  • Suitable for indoor and outdoor applications in wet, damp and dry locations. All border tubing come with watertight connectors

  • Operating temperature: -40°C to 70°C  |  -40°F ~ 158°F

  • IP 67 rated

  • UL & CUL listed

  • 5 year warranty

Rigid Border Tubing Specifications

Standard Colors: Red (RD), Yellow (YL), Mellow Yellow (MY), Orange (OR), Cool White (CW), Blue (BL), and Green (GR). Custom colors upon request*

Power Capability: Max combined footage 37’ per Allanson 96W 24V DC Power Supply (CV244-120-277)

Installation Hardware: Stainless Steel Snap Clip, Aluminum Slide Clip, Wire Retainer Clip, Wire Nuts

DOWNLOADS

Rigid Border Tubing is part of the ColorMix product line

CASE STUDIES

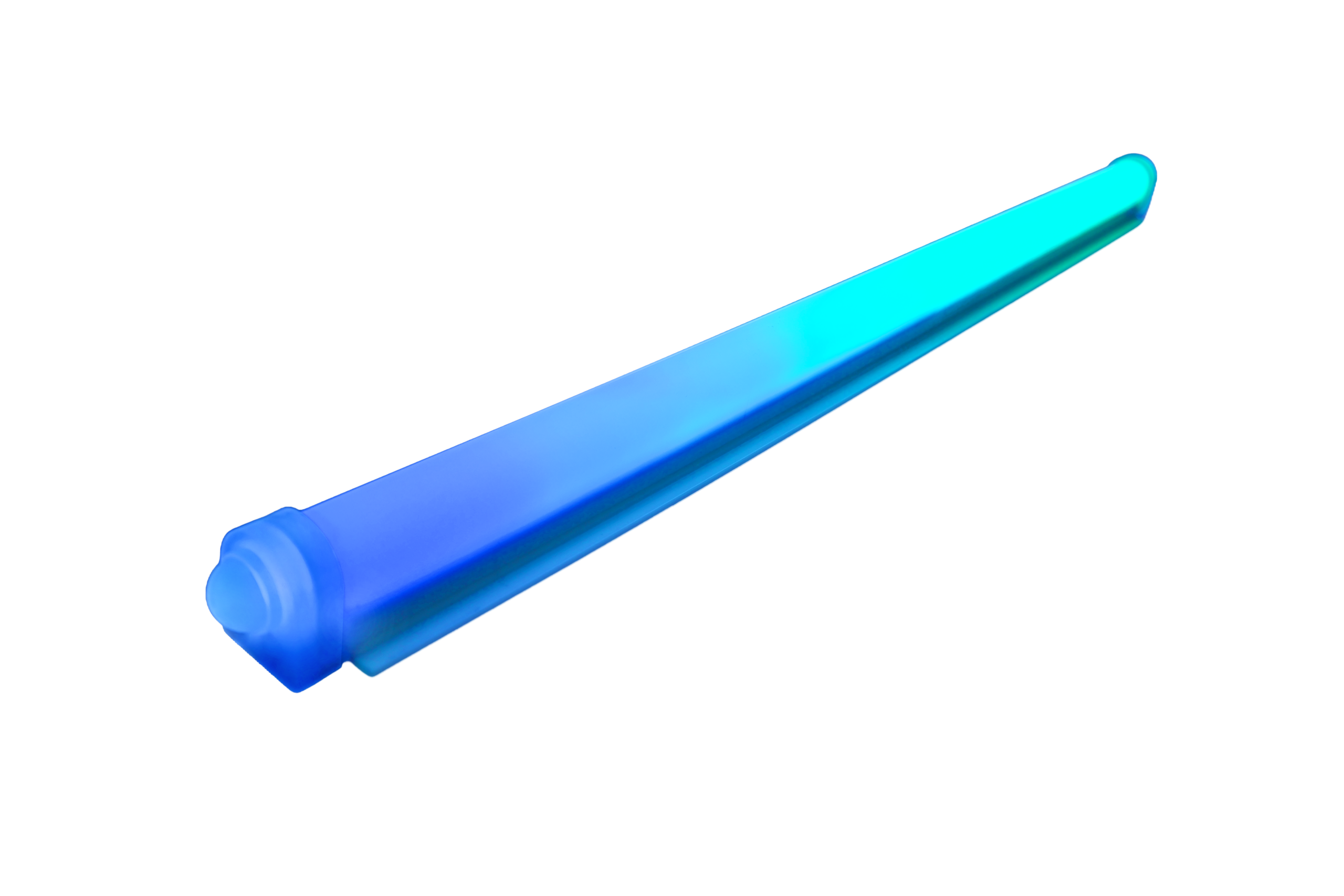

RGB Addressable Rigid Border Tube | ARBT-XXRGB AD

With fully addressable RGB technology, Allanson’s RGB Addressable Rigid Border Tubing delivers smooth color chasing, seamless transitions, and custom animated displays that bring architectural features and facades to life.

  • Fully addressable RGB technology for customized lighting displays
  • Create stunning animated effects with color chasing, morphing, and dynamic transitions
  • Transform building facades with vibrant, programmable RGB illumination
  • Unique, non-yellowing end caps allow for thermal expansion and uniform illumination with no dead spots for a clean, sleek look
  • Stainless steel retention/mounting clips and aluminum slide attachments for easy mounting
  • Rigid UV resistant polycarbonate housing
  • Rigid Border Tubing is field cuttable with cut kit
  • All border tubing come with watertight connectors
  • Compatible with Allanson’s SPI controllers and accessories
  • 5yr Warranty
  • Balanced and uniform illumination

DOWNLOADS

RGB Addressable Rigid Border Tubing is part of the ColorMix product line

Rigid Border Tube Cutting Demo
