RGB MODULES
Harness the power of color with RGB LED Modules designed from the ground up to illuminate your sign project! RGB LED modules can emit various colors of light. They are manufactured by packaging red, green, and blue LEDs into a transparent or semitransparent plastic shell. The three primary colors, red, green, and blue, can be mixed to create virtually any color, while also maintaining control of brightness.

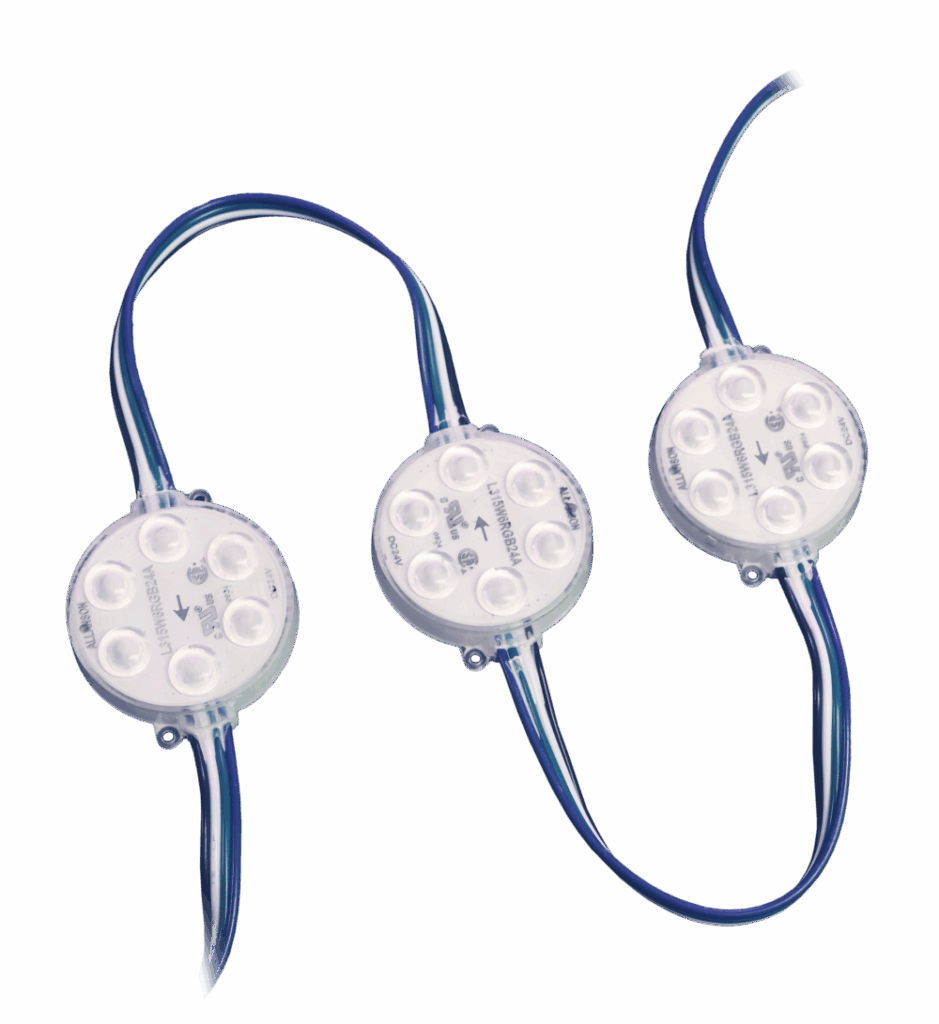

LEDgen3 – RGB Addressable LED Module
Circular tricolor emitter provides dynamic lighting effects with individually addressable modules. Its size and shape make it optimal for small spaces.
- LED Channels: Red, Green, Blue
- Input Voltage: 12V DC
- Power Consumption/Mod: 0.6W
- Beam Angle: 165 Degrees
- Mod/Foot: 2.5
- Max Mod/60W Power Supply: 100
- Operating Temperature: -40C to +60C
- Environmental Rating: IP67
- Dimensions: 5.31″ x 1″ x 0.44″
- Warranty: 5 Years
- Packaging: 40 Modules/Bag
Loading Recommendation
| Power Supply | Module Count |
|---|---|
| CV125-120 BLK (60W) | 100 |
| CV125-120-277V BLK (60W) | 100 |
| CV125-347 (60W) | 100 |
| CV12125-MV (60W+60W) | 100+100 |

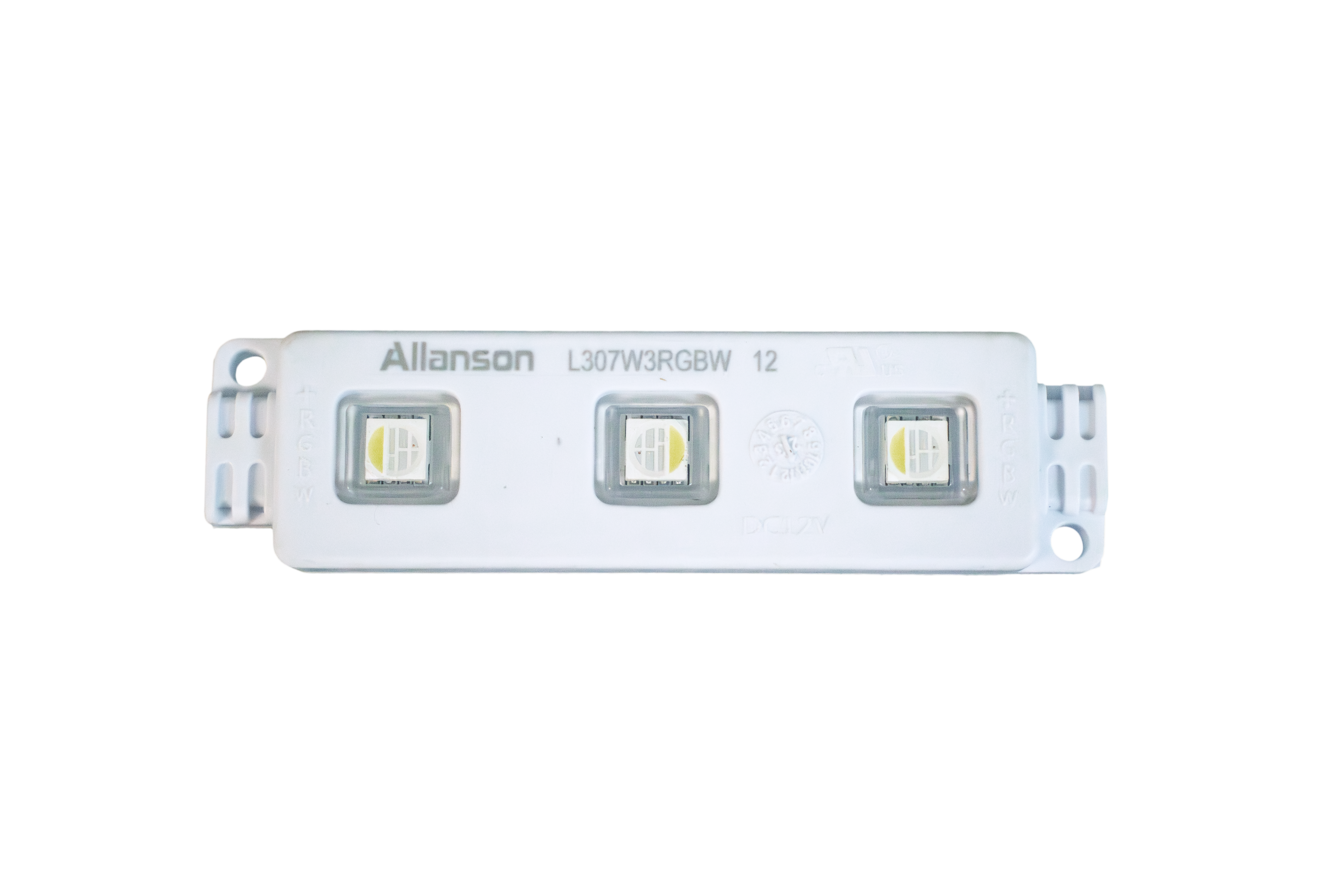

LEDgen3 – RGBW LED Module
Tricolor emitter provides a clear, reliable, and colourful performance for many projects. Its long/thin shape make it optimal for small spaces.
- LED Channels: Red, Green, Blue, White (7000K)
- Input Voltage: 12V DC
- Power Consumption/Mod: 0.96W
- Beam Angle: 120 Degrees
- Mod/Foot: 2.5
- Max Mod/60W Power Supply: 62
- Operating Temperature: -40C to +60C
- Environmental Rating: IP66
- Dimensions: 5.11″ x 2.30″ x 0.31″
- Warranty: 5 Years
- Packaging: 40 Modules/Bag
Loading Recommendation
| Power Supply | Module Count |
|---|---|
| CV125-120 BLK (60W) | 62 |
| CV125-120-277V BLK (60W) | 62 |
| CV125-347 (60W) | 62 |
| CV12125-MV (60W+60W) | 62+62 |
ACLW-RGB AD 2 Addressable RGB Module Specs
Dynamic lighting effects with individually addressable modules. No need for additional sub-controllers. Customized programming available.
- LED Channels: Red, Green, Blue
- Input Voltage: 12V DC
- Power Consumption/Mod: 0.72W
- Beam Angle: 110 Degrees
- Mod/Foot: 2.5
- Max Mod/60W Power Supply: 80
- Operating Temperature: -30C to +60C
- Environmental Rating: IP67
- Dimensions: 2″ x 1.57″ x 0.32″
- Warranty: 5 Years
Loading Recommendation
| Power Supply | Module Count |
|---|---|
| CV125-120 BLK (60W) | 80 |
| CV125-120-277V BLK (60W) | 80 |
| CV125-347 (60W) | 80 |
| CV12125-MV (60W+60W) | 80+80 |
ACLW-RGB3 40 RGB Module Specs
Tricolor emitter produces bright and efficient lighting effects that support customized programming.
- LED Channels: Red, Green, Blue
- Input Voltage: 12V DC
- Power Consumption/Mod: 0.72W
- Beam Angle: 110 Degrees
- Mod/Foot: 2.5
- Max Mod/60W Power Supply: 80
- Operating Temperature: -30C to +60C
- Environmental Rating: IP67
- Dimensions: 2.93″ x 0.75″ x 0.25″
- Warranty: 5 Years
- Packaging: 40 Modules/Bag
Loading Recommendation
| Power Supply | Module Count |
|---|---|
| CV125-120 BLK (60W) | 80 |
| CV125-120-277V BLK (60W) | 80 |
| CV125-347 (60W) | 80 |
| CV12125-MV (60W+60W) | 80+80 |
